Specs for skidsteer quick attach anywhere?

[chuckinnc]

Ive got a old Arps brand small back hoe I would like to fabricate a plate/hitch to fit my 763 Bobcat. I could take the bucket off and measure but I was hoping there was a webpage with the specifications. Also if anyone has fabricated a hitch for one then any ideas or tips would be a big help too



[Tazza]

http://home.comcast.net/~jeff.beener/SAE_J2513.pdf
Mr Jimi is the one to talk to about these, he has made a few. A link to his post is here:
http://www.skidsteerforum.com/DesktopDefault.aspx?tabid=54&frmView=ShowPost&PostID=2887
and another post here:
http://www.skidsteerforum.com/DesktopDefault.aspx?tabid=54&frmView=ShowPost&PostID=6803
Good luck with your attachment plate.



[nailsbeats]

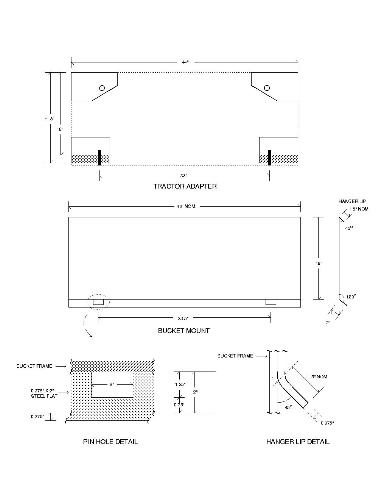

Two ways to do it depending on how much fab equipment you have. You can do all the forming which is shown in the link or you can use flat stock and weld all the seams. Oh yeah the third way, a hybrid of bending and welding.
The second way is by far easier with less figuring and equipment needed. I will give you a quick run down. Take your face plate with the top piece of flat stock (44 5/8" long) welded on at a 45 degree angle. Hang that on your 763 and clamp it tight to the quick tach on the machine. Make sure everything is square. Cut out your bottom plates with holes in them for the pins to protrude through. Hold them up to your skidsteer's quick tach, line them up an run your pins down. Make sure that the tapered side of the pin hits the back of the hole, tightening the unit up as it comes down. This could take some tweaking but is necessary to get out all the play. If you cut your holes to big, just fill with a little weld and grind. If it looks good, tack it and weld. I call this the "poor man's tach plate".
Hope this helps and good luck to ya!



[sterlclan]

Two ways to do it depending on how much fab equipment you have. You can do all the forming which is shown in the link or you can use flat stock and weld all the seams. Oh yeah the third way, a hybrid of bending and welding.
The second way is by far easier with less figuring and equipment needed. I will give you a quick run down. Take your face plate with the top piece of flat stock (44 5/8" long) welded on at a 45 degree angle. Hang that on your 763 and clamp it tight to the quick tach on the machine. Make sure everything is square. Cut out your bottom plates with holes in them for the pins to protrude through. Hold them up to your skidsteer's quick tach, line them up an run your pins down. Make sure that the tapered side of the pin hits the back of the hole, tightening the unit up as it comes down. This could take some tweaking but is necessary to get out all the play. If you cut your holes to big, just fill with a little weld and grind. If it looks good, tack it and weld. I call this the "poor man's tach plate".
Hope this helps and good luck to ya!

Ive made the lower ones out of three pcs of flat bar welded one to each side of the pin and one at the back making sure it was tight to the pin as nailsbeats said and all was good.Jeff



[skidsteer.ca]

Ive made the lower ones out of three pcs of flat bar welded one to each side of the pin and one at the back making sure it was tight to the pin as nailsbeats said and all was good.Jeff

75291d1177387373-here-universal-attachment-mount-specification-sae_j2513.pdf



[skidsteer.ca]

75291d1177387373-here-universal-attachment-mount-specification-sae_j2513.pdf

Drat, it made my 87 kb file a 20 kb file, no its to small to read.
email me and I'll send it to you.
[email protected]
Ken
