Testing my hydraulic circuit on my M-444

Help Support SkidSteer Forum:

mrfixer

Active member
Joined
Sep 2, 2023
Messages
36
Not sure what happened to my earlier post... so here it is again

I have a '63 - '65 M-444 - the engine on it has seized, so I pulled it out. While I'm shopping for a replacement motor I wanted to test/assess the hydraulic system. Since the unit wasn't running I know nothing about is operation, leaks, etc. Is there a way one could test some of the components individually? I thought if I could spin that hydraulic pump some way, I could build the pressure in the system and be able to test the directional valves, cylinders, etc. I have a Jet electric motor, 2hp 1750rpm that can spin Clockwise or CounterClockwide. If I could fashion an adapter that mates to that splined shaft on that pump could that work for testing individual circuit branches in the system?

Danger, cautionary tales, etc - are welcome

OP
OP
mrfixer

mrfixer

Active member
Joined
Sep 2, 2023
Messages
36

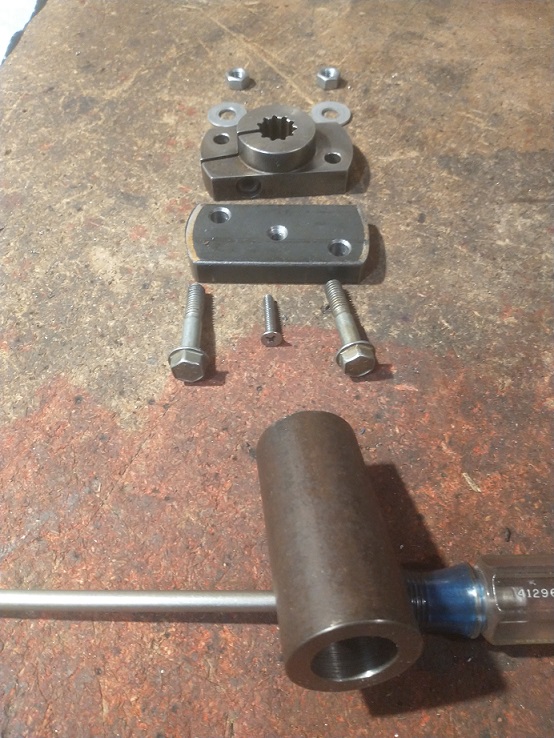

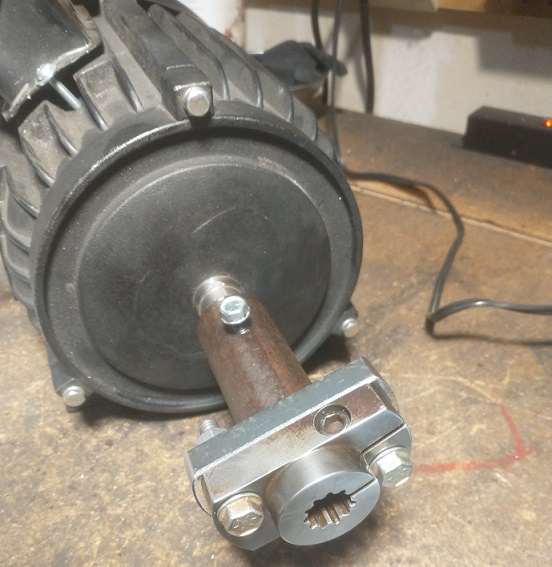

I built myself an adapter using a spline connector from the old Onan CCK. I'll attempt to temporarily spin my hydraulic pump with this contraption:


Attachments

  • adapter1.jpg
    319.8 KB · Views: 38
  • adapter2.jpg
    249.4 KB · Views: 43
OP
OP
mrfixer

mrfixer

Active member
Joined
Sep 2, 2023
Messages
36
Wish that shaft was a strong flexible kind so it would be easier on any minor mis-alighment with the pump. I've read the pumps wear out faster if they are not aligned well.

OP
OP
mrfixer

mrfixer

Active member
Joined
Sep 2, 2023
Messages
36

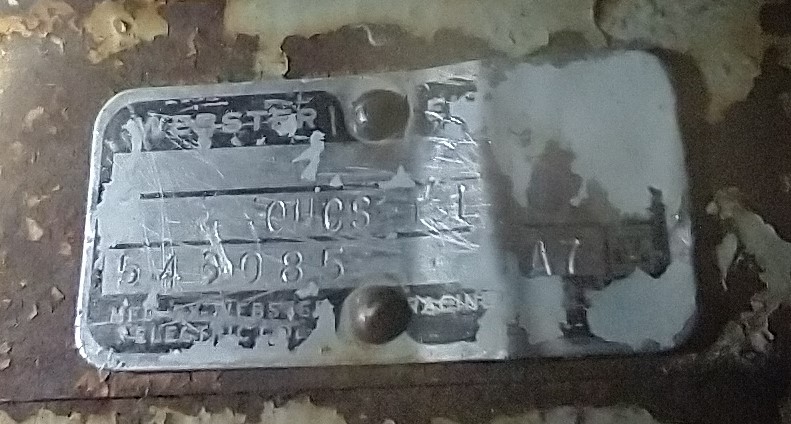

My pump: Webster OHCS... that's all I can make out - can anyone help figure out what it is and where I could get a rebuild kit for it?


Attachments

  • webster pump.jpg
    webster pump.jpg
    273.4 KB · Views: 45
OP
OP
mrfixer

mrfixer

Active member
Joined
Sep 2, 2023
Messages
36

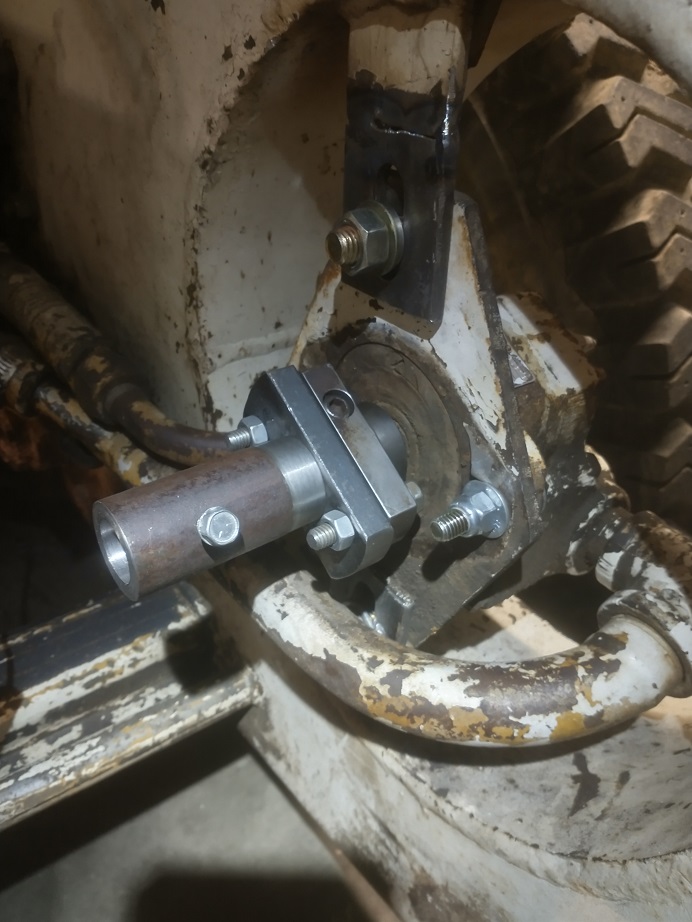

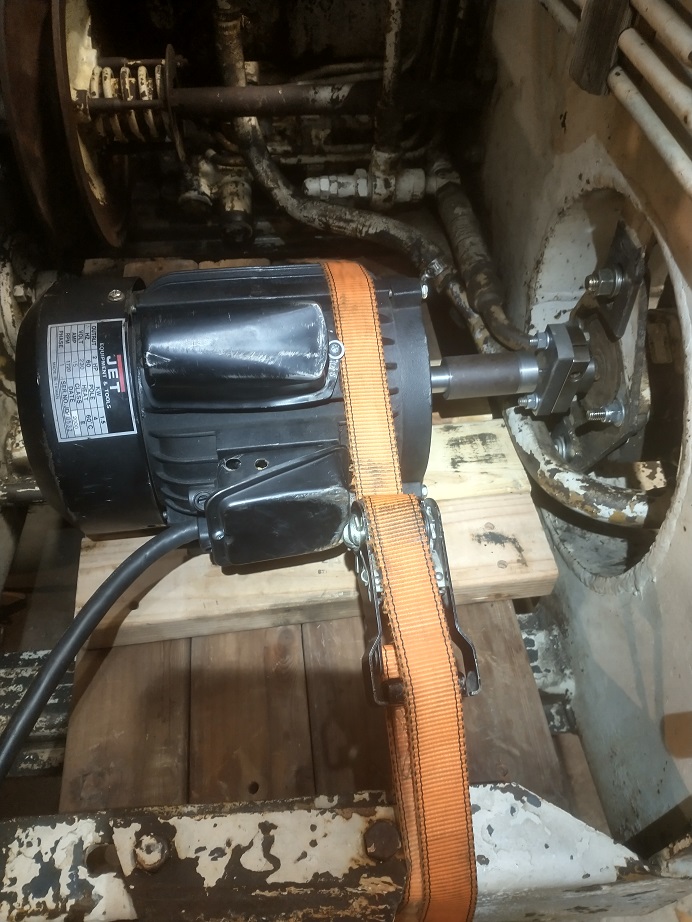

I hooked up my make-shift electric motor via the custom adapter to my Hydraulic pump and ran it for a bit. I leveled it pretty well and turned it on an off briefly with loose bolts so it would 'settle into place', then tightened everything down. It was scary as he&& at first to run it. I wasn't sure what was going to be coming out through those old hoses and fittings... I was wearing full face shield for protection as I peaked here and there, but it all stayed together well. Only ran it for few minutes, but after checking for leaks I was able to move the boom up and down via one of the control valves. I then curled the bucket in and back out few times. All seems to be ok so far - no leaks tonight. Hope same in the morning - I'm thrilled to have done this simple test - at least I know s o m e t h i n g works on this old girl.


Attachments

  • pump_test1.jpg
    362.3 KB · Views: 46
  • pump_test2.jpg
    268.6 KB · Views: 46
OP
OP
mrfixer

mrfixer

Active member
Joined
Sep 2, 2023
Messages
36

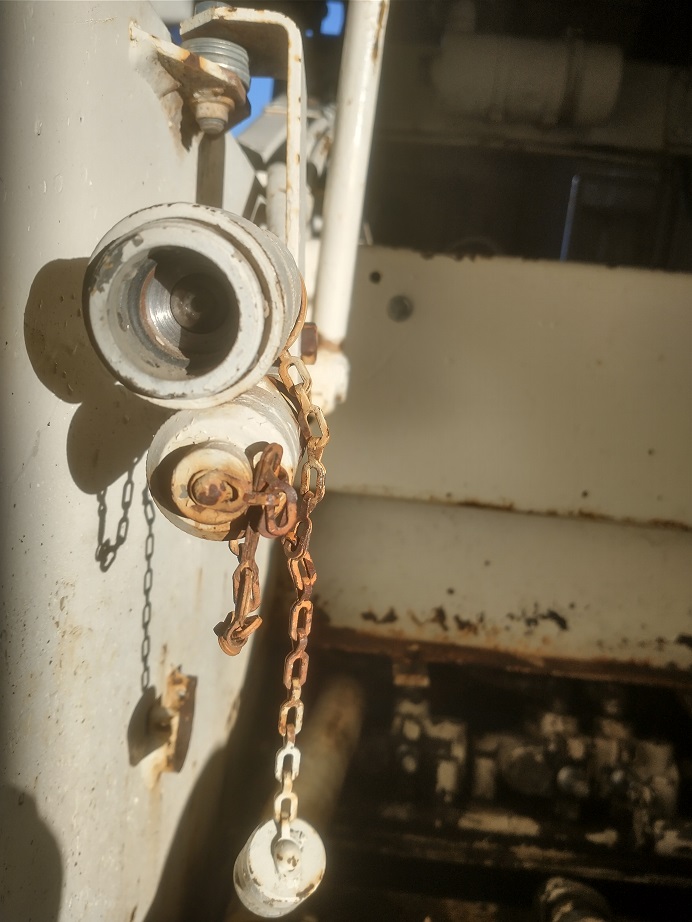

Now I know things work, but don't know how much pressure the old pump is producing.... could be good could be weak, can't tell. Where do people plumb a pressure gauge on these? I do have the auxiliary connectors on this old unit, if I can figure out what type it is, it would be a good temporary place to measure it.

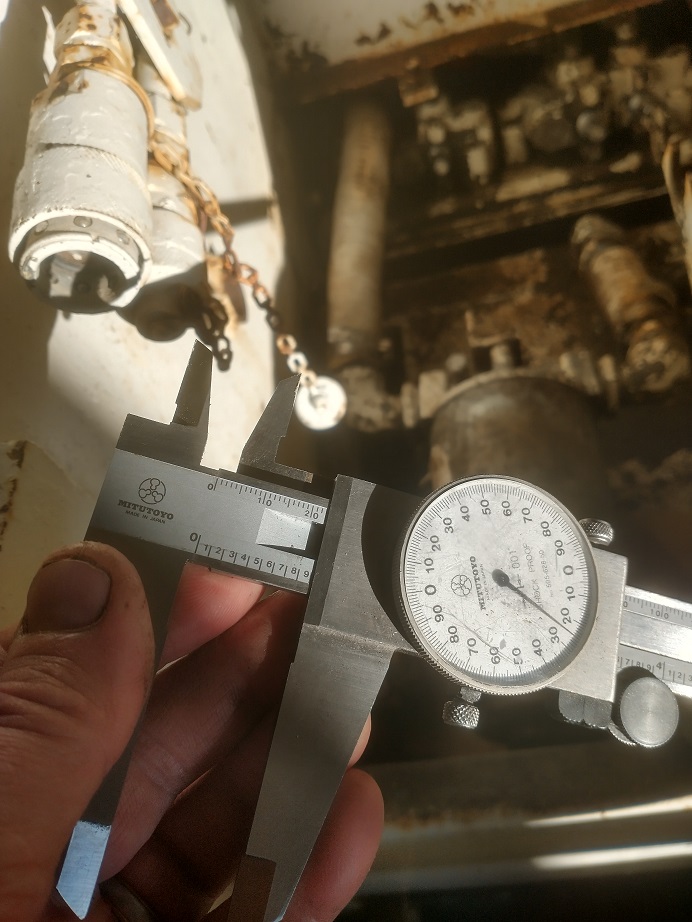

That caliper reads .925''


Attachments

  • aux2.jpg
    313.6 KB · Views: 47
  • aux1.jpg
    293.4 KB · Views: 36
