JCB 300T / Volvo 135C Grid Heater Wiring

Help Support SkidSteer Forum:

mtnxtreme

Member
Joined
Sep 1, 2020
Messages
11

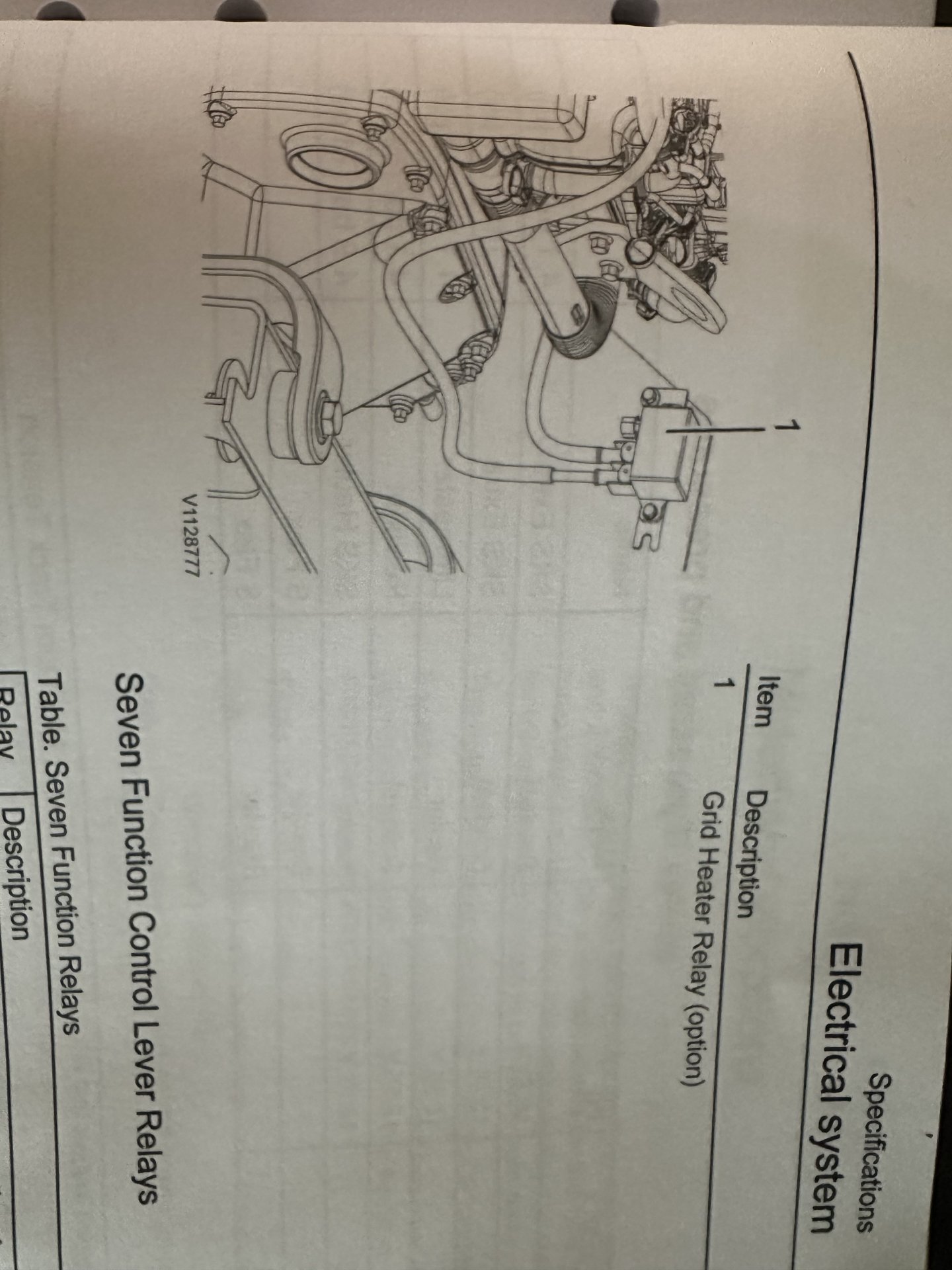

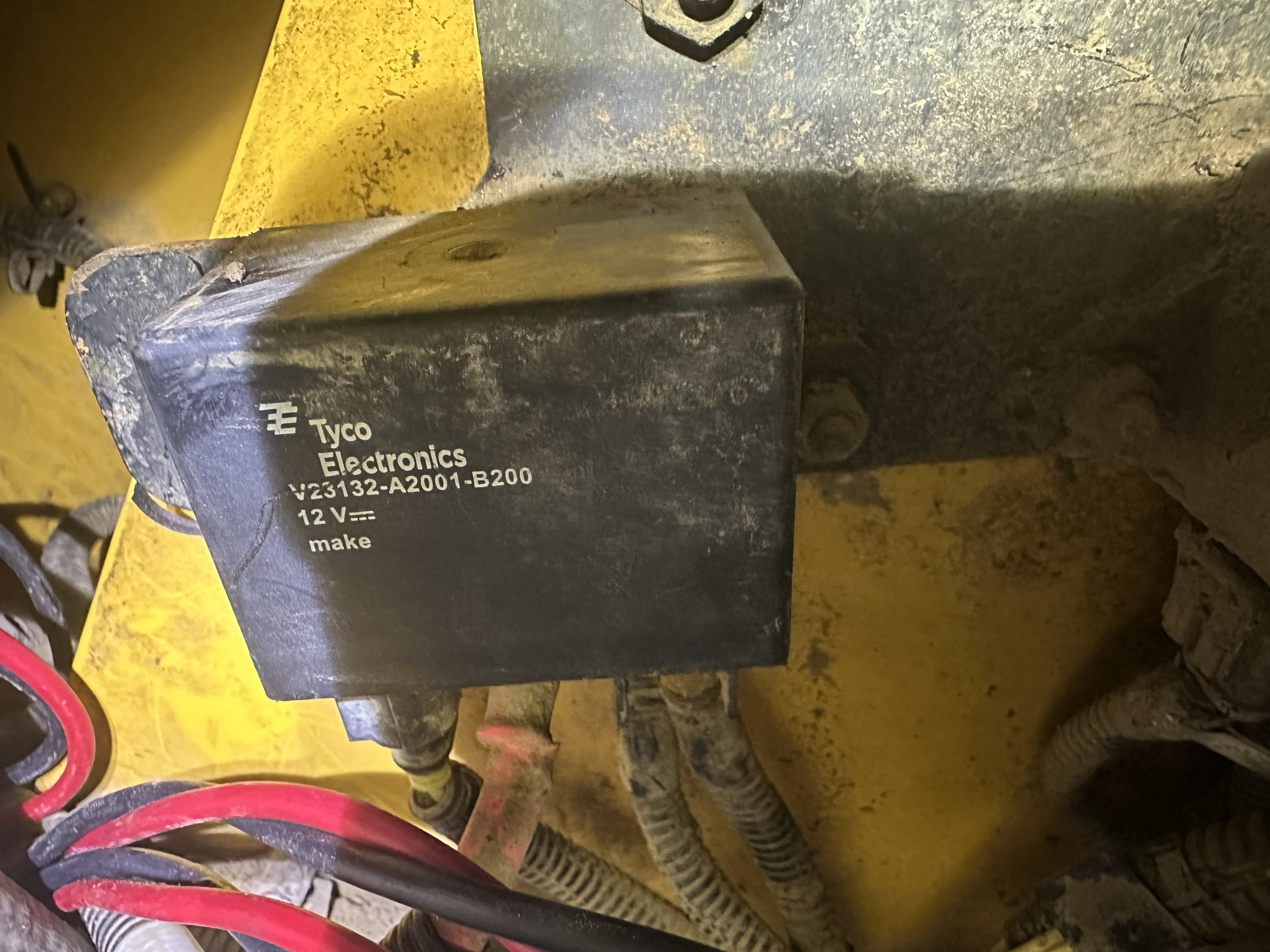

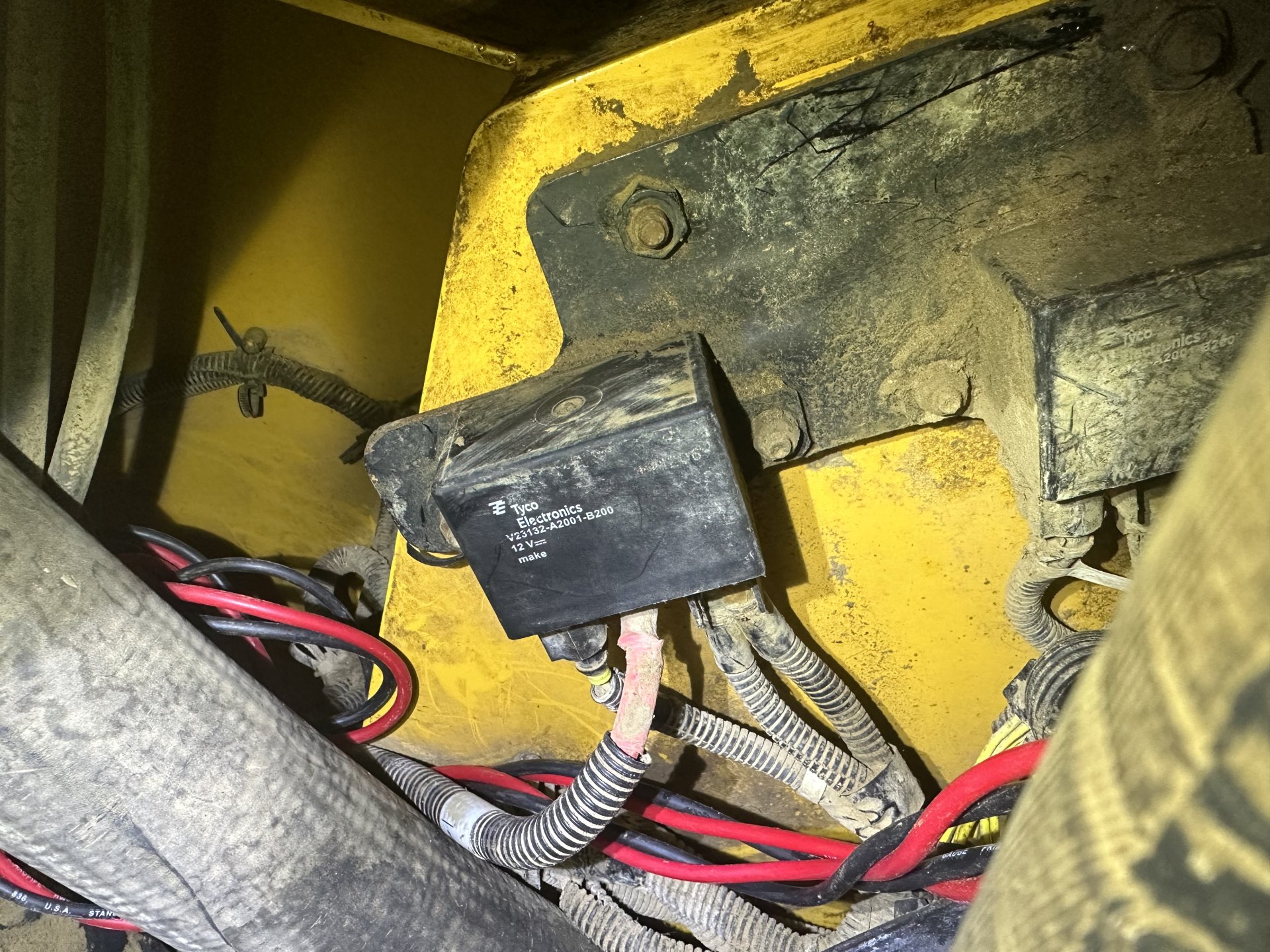

JCB and Volvo same machine, purchased partially unassembled we replaced motor and found a 10gauge red wire not hooked to anything, looks like it's feed the Grid Heater Relay but can figure out where it should be hooked up to. Can anyone help here's a few pics.
