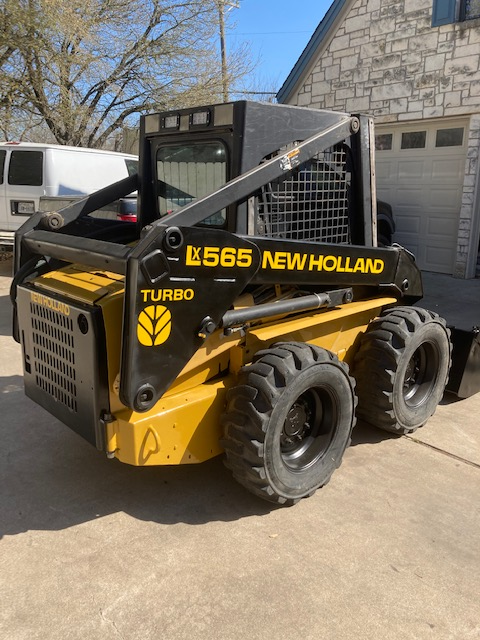

LX565 Dashboard Retrofit

[elmouca]

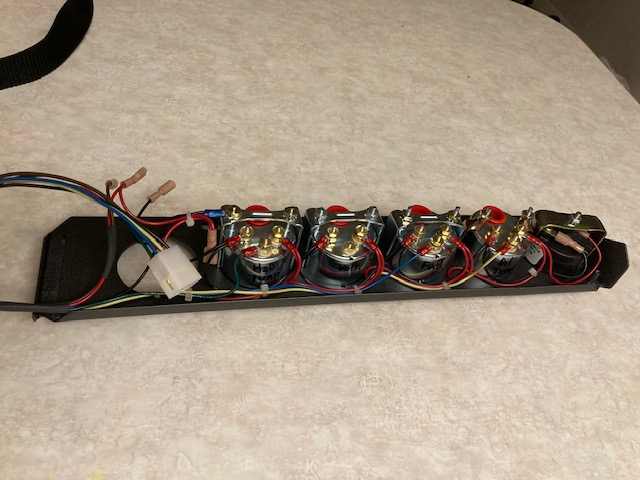

I nearly done retrofitting the electronic dashboard with steam gauges. It wasn't too difficult but it would not be easy without the wiring diagram. I used SW gauges with a Speedhut tachometer. I matched the sending units to the gauges except for the fuel gauge. In this case, I matched a gauge to the sending unit in the tank. I used all of the existing wires to the dashboard and didn't have to run any new ones. If anyone has questions or wants pictures, please reply and I'll share.



[Tazza]

Nice job, i'm sure others will be interested in what you did.



[elmouca]

Tachometer video https://www.dropbox.com/s/u5n60bgmkpuyh3n/LX565%20Analog%20Tachometer.MOV?dl=0



[elmouca]

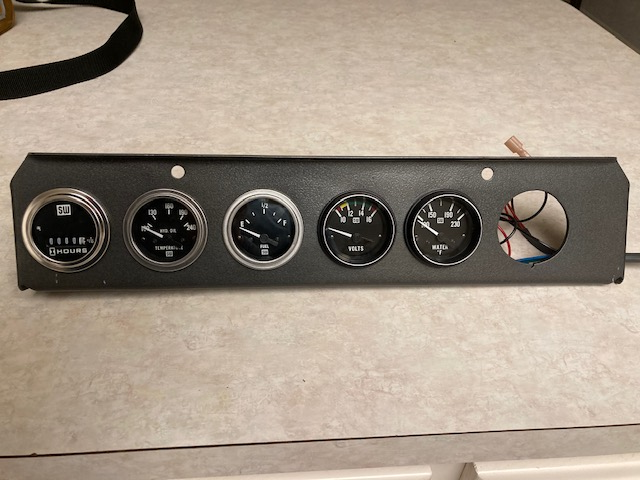

Steam Gauge picture: https://www.dropbox.com/s/vewqr8aqhxvachs/LX565%20Steam%20Gauge%20Dashboard.jpg?dl=0



[Tazza]

Steam Gauge picture: https://www.dropbox.com/s/vewqr8aqhxvachs/LX565%20Steam%20Gauge%20Dashboard.jpg?dl=0

That is very cool!



[davideckwright]

Would you be willing to share your part numbers used in this conversion? I am about to do the same so if you have anything you could share, pics, advice, wires used, whatever, I would appreciate it. Very nice job. It looks like it should have from new.



[elmouca]

I don't have a compiled list of part numbers but you should be able to source the gauges from the pictures. If there's a specific question that you have, I will help. Good luck with your project!



[elmouca]

I checked the links and they are working! Just copy and paste.



[elmouca]

Summit Racing was used as the source for gauges:

SWW-280EA SDR TMP KIT 100-240?F 1/8 A Shipped on 1/4/2021 $23.99 1 $23.99


SWW-280EC SDR TMP KIT 100-240 1/8 IN A Shipped on 1/4/2021 $24.99 1 $24.99


SWW-284AF GA TMP WATER ELEC HD 100- A Shipped on 1/4/2021 $41.99 1 $41.99


SWW-284H GA VOLT ELEC HD 10-16V 2- A Shipped on 1/4/2021 $48.99 1 $48.99


SWW-284H GA VOLT ELEC HD 10-16V 2- Returned on 1/18/2021 $48.99 1 $48.99


SWW-82303 GA FUEL LEVEL ELEC DLX 240 A Shipped on 1/4/2021 $39.99 1 $39.99


SWW-82345 GA TMP HYD OIL ELEC DLX 1 A Shipped on 1/4/2021 $37.99 1 $37.99


SWW-SW83502 HM DC 10-80VDC DLX 9999.9 A Shipped on 1/4/2021 $57.99 1 $57.99


Part Number Item Box Status Price Qty Total

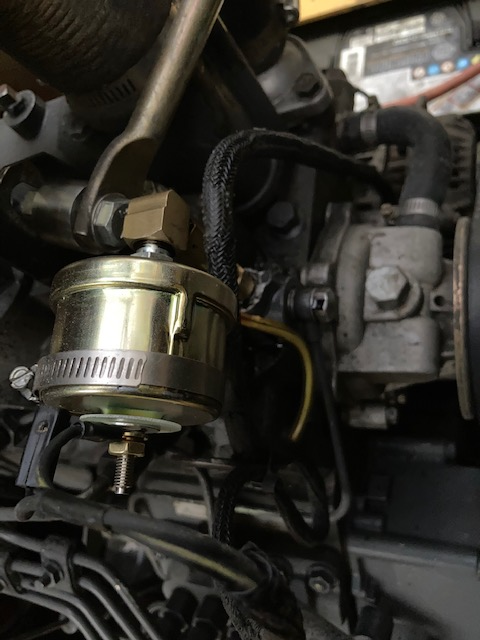

SWW-284L GA PRESS OIL ELEC HD 0-10 A Shipped on 1/14/2021 $44.99 1 $44.99
Part Number Item Box Status Price Qty Total

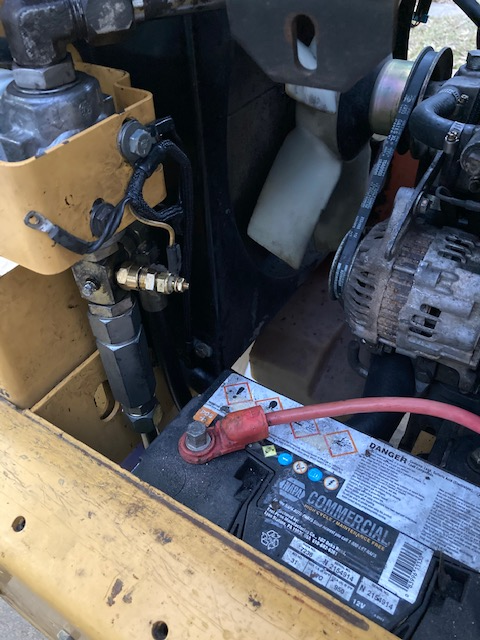

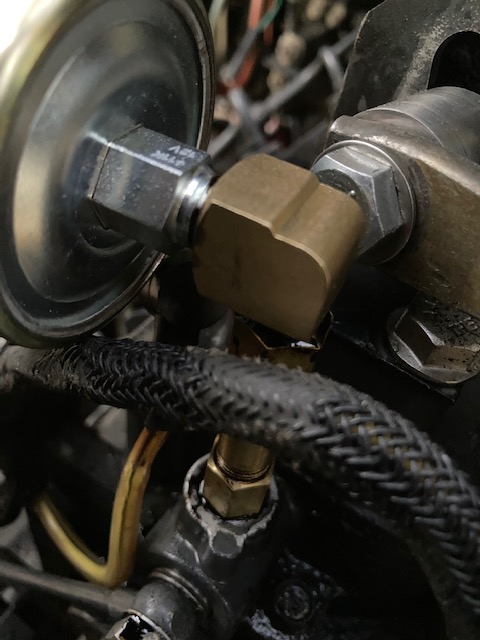

SWW-279B-F SDR PRESS 100 PSI 240-33.5O A Shipped on 1/18/2021 $41.99 1 $41.99



[elmouca]



[elmouca]



[elmouca]



[elmouca]



[elmouca]



[elmouca]



[SkidRoe]

Nicely Done - Good looking machine!!



[Alaska_Rancher]

I nearly done retrofitting the electronic dashboard with steam gauges. It wasn't too difficult but it would not be easy without the wiring diagram. I used SW gauges with a Speedhut tachometer. I matched the sending units to the gauges except for the fuel gauge. In this case, I matched a gauge to the sending unit in the tank. I used all of the existing wires to the dashboard and didn't have to run any new ones. If anyone has questions or wants pictures, please reply and I'll share.

well done , I'm gonna do the same thing on my Lx885



[bradwood]

Elmouca,
Please share the retrofit of your EIC. Mine just went out and I can't find a replacement. I have the wire diagram for the machine so I think I can do it. Any help would be great.
New Holland LX665 (1999)



[bradwood]

Just saw your pics. Thank you!



[Shanmar]

You can try contacting Mike Fyock on Facebook (the one that lives in Lititz, PA). I had the same problem a while back. He was building adapter cables to be able to use newer model boards in the older machines. He included the board, adapter cable, and mounting plate to fit. Has worked fine for me.
