L425 Boom Chopped Off?

[BobbingAround]

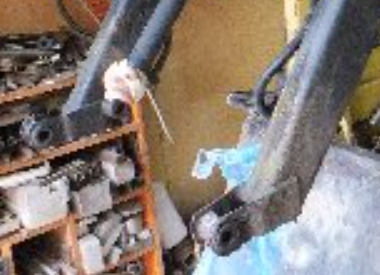

Trying to rejuvenate this old skid. Looks like the boom was chopped off, but not 100% sure, so I was hoping to get some help as the bucket is rubbing the inner-front tire tread causing damage. Based on parts diagrams online it appears the end of the boom (where the #2 bushing goes) has been chopped off.


If they have been chopped off, what are the dimensions?



[Shanmar]

From this, I'd say you are correct. Gonna take some creative fabricating.

Here's where I got that picture. There are many others that may be useful to you.
https://www.theschneiders.ca/l425.html



[BobbingAround]

thanks for the reply...now to figure out the length (how far the peiece sticks out.....width and height are evident from the remains
