Identify year of manufacture for Mustang 940E

Help Support SkidSteer Forum:

beartracks

New member
Joined
Apr 26, 2012
Messages
2
I'm looking at a Mustang 940E with 469 hrs on the clock. Anyone know what year this might be? The serial number is 649130D Thanks, BT


Des

Well-known member
Joined
Jan 17, 2011
Messages
59
The year it was built is Dec 1996,469hrs seems to be to low for the year,it has probably been around the clock,most of the customers that I have with 940Es have 8000-25000hrs.

OP
OP
B

beartracks

New member
Joined
Apr 26, 2012
Messages
2
The year it was built is Dec 1996,469hrs seems to be to low for the year,it has probably been around the clock,most of the customers that I have with 940Es have 8000-25000hrs.
Thanks Des, kind of figured once around as well. BT


chief78cj7

Member
Joined
Oct 20, 2022
Messages
6
Looking for help determining the year on my Mustang 940. Serial number: 120-32824

I got it from my parents about a year ago. He previously owned a construction firm, but this unit was for around his house on 16 acres. I'm on 14 acres and it'll also get the similar light duty on the driveway and into the woods a bit.

Apparently, it was 2011 that it has 2209 hours. And now its showing 2291 hours.

Some pics:


Attachments

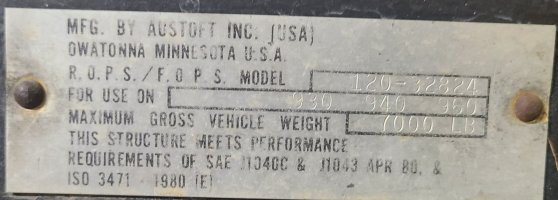

  • Mustang940SerialNumber.jpg
    193.2 KB · Views: 110

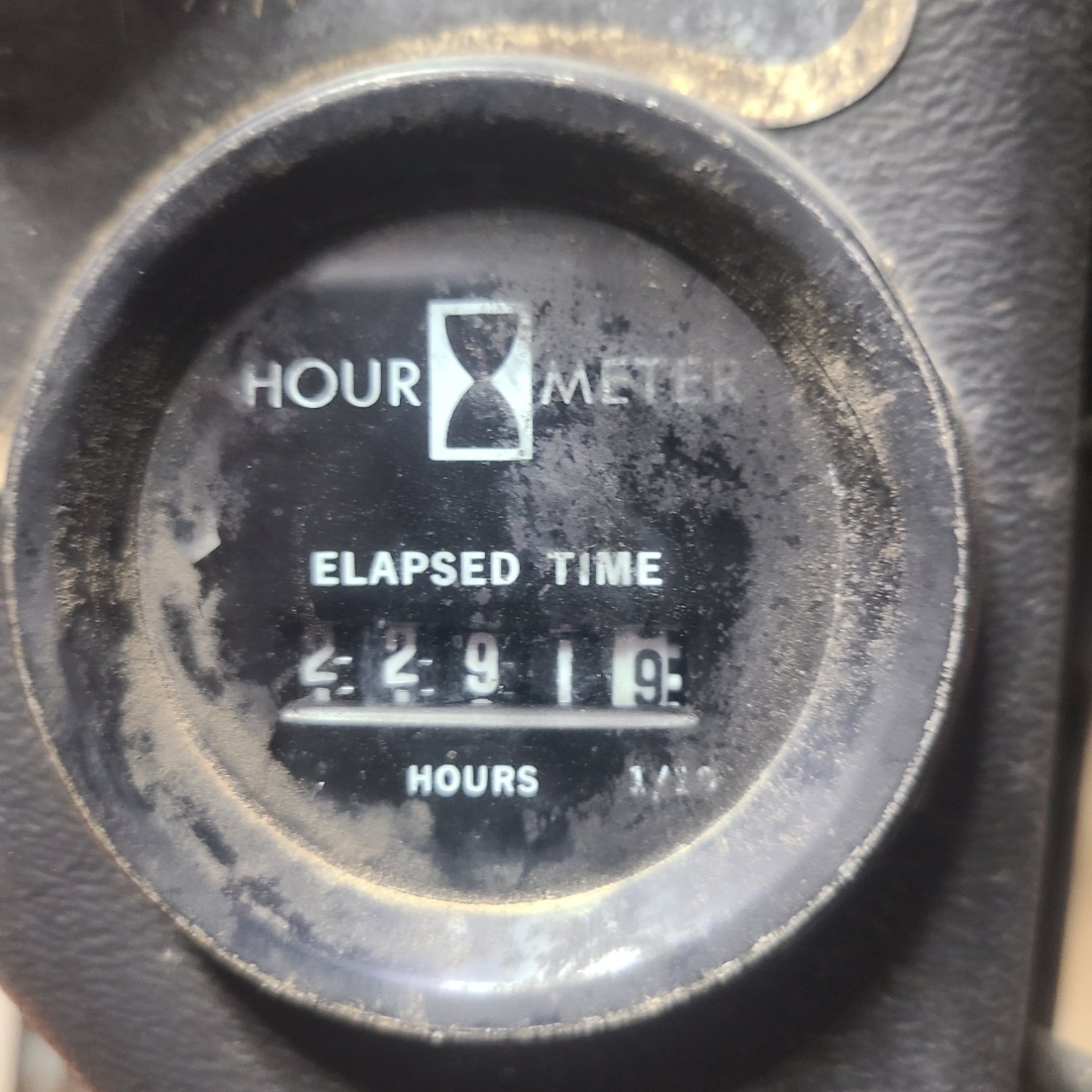

  • Mustang940_Hours_20221023.jpg
    289.9 KB · Views: 120

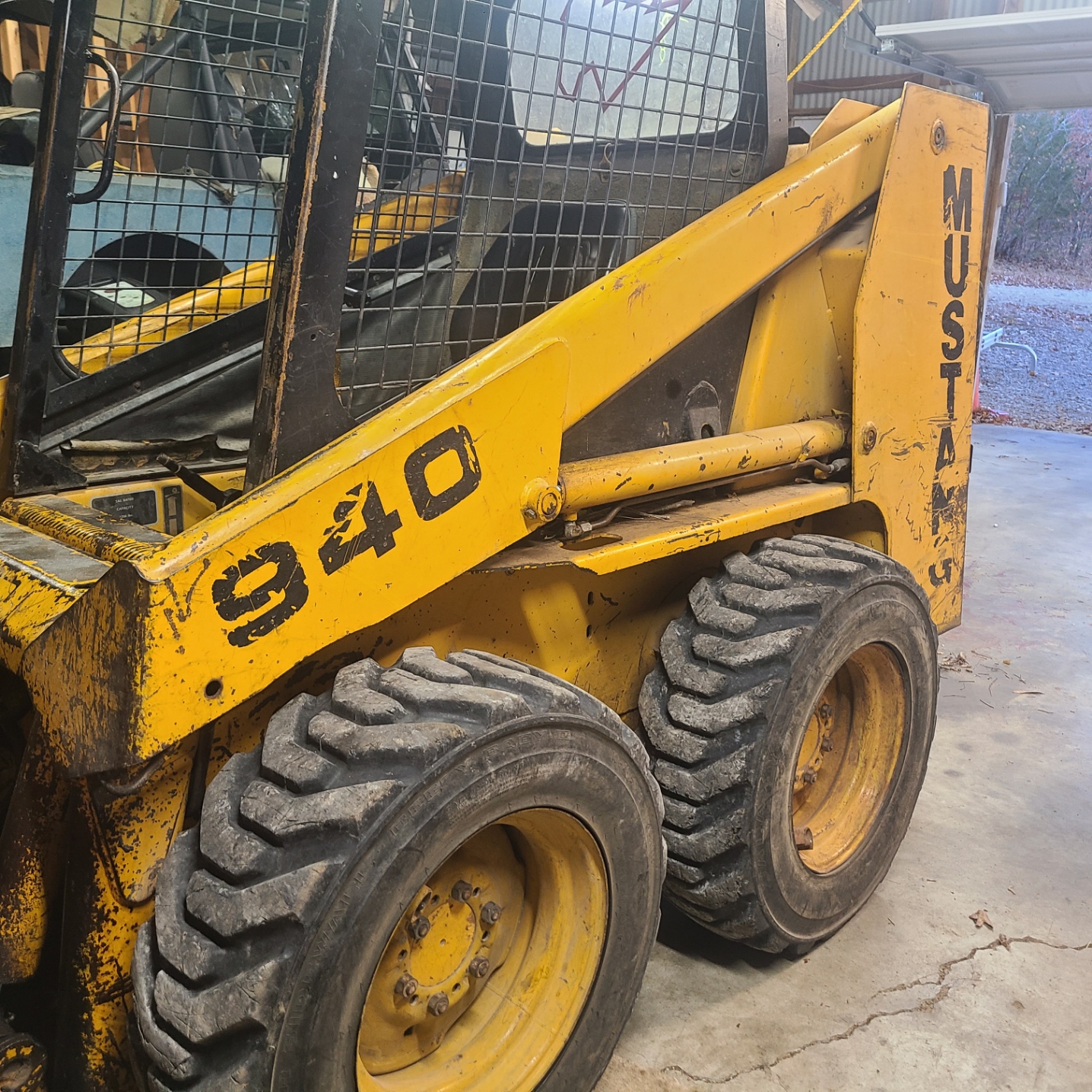

  • Mustang940ProfilePic.jpg
    1 MB · Views: 123

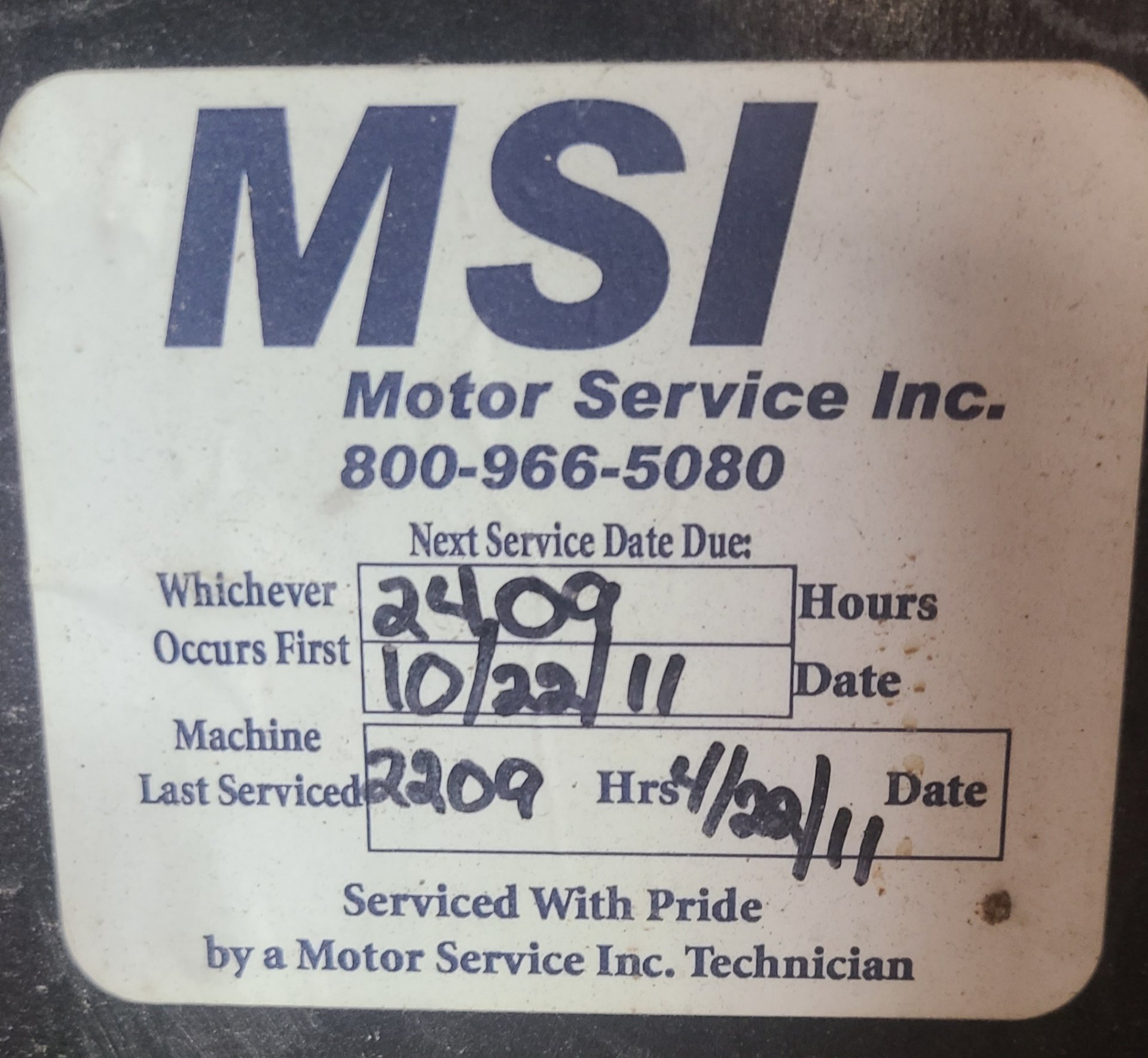

  • Mustang940_LastServic e2011.jpg
    Mustang940_LastServic e2011.jpg
    351.3 KB · Views: 135
Last edited:

Firefighter

Well-known member
Joined
Dec 31, 1969
Messages
173
The Serial number is located on the frame on the right side underneath the boom near the
top hinge pin, they were built from 1988 thru 1995 with 940e built in 1996


Mustang9602060

New member
Joined
May 12, 2023
Messages
4
Hello, I think I have a Mustang 960. Can you tell me the year based off the serial number 1611462? Thanks!

Just an FYI I have created a separate thread for my question.

Last edited:

Jwilhelm

New member
Joined
Jun 10, 2024
Messages
2
Hello I am in need of a throttle cable for my Mustang skid steer, Serial number is 649089. I know it is a 940 but need help with determining the year. Thank you


Firefighter

Well-known member
Joined
Dec 31, 1969
Messages
173
Throttle cable number is 090-32042, should be the same on all 940 models, can u confirm the serial number
the first number is the year built, they start manufacturing in 1988 & ended in 1994, then had the 940e for about a yr in 1995 maybe into 1996, unless u have a 940e, the yr number seems a little off which only difference they went with electrical boom lock outs, rather than mechanical boom lock outs


Jwilhelm

New member
Joined
Jun 10, 2024
Messages
2
OK, thank you for the quick response and letting me know this information. I really appreciate it! The serial number is pretty hard to read, the last digit is not very clear
