Case 1840 1996

Help Support SkidSteer Forum:

hrb27

New member
Joined
Aug 29, 2022
Messages
1
I just took apart and put back together the Tandem Pump Linkage , I got it all back but when I start it, it jumps forward and stalls, so I'm trying to figure out how to adjust the linkage so the sticks are in like with each-other in the neutral position.


River Fluid Power

Well-known member
Joined
Aug 18, 2022
Messages
107
I just took apart and put back together the Tandem Pump Linkage , I got it all back but when I start it, it jumps forward and stalls, so I'm trying to figure out how to adjust the linkage so the sticks are in like with each-other in the neutral position.
Send a photo of your linkage setup, and I will see if I can guide you.


kecamml

Member
Joined
Nov 7, 2022
Messages
16
I just took apart and put back together the Tandem Pump Linkage , I got it all back but when I start it, it jumps forward and stalls, so I'm trying to figure out how to adjust the linkage so the sticks are in like with each-other in the neutral position.

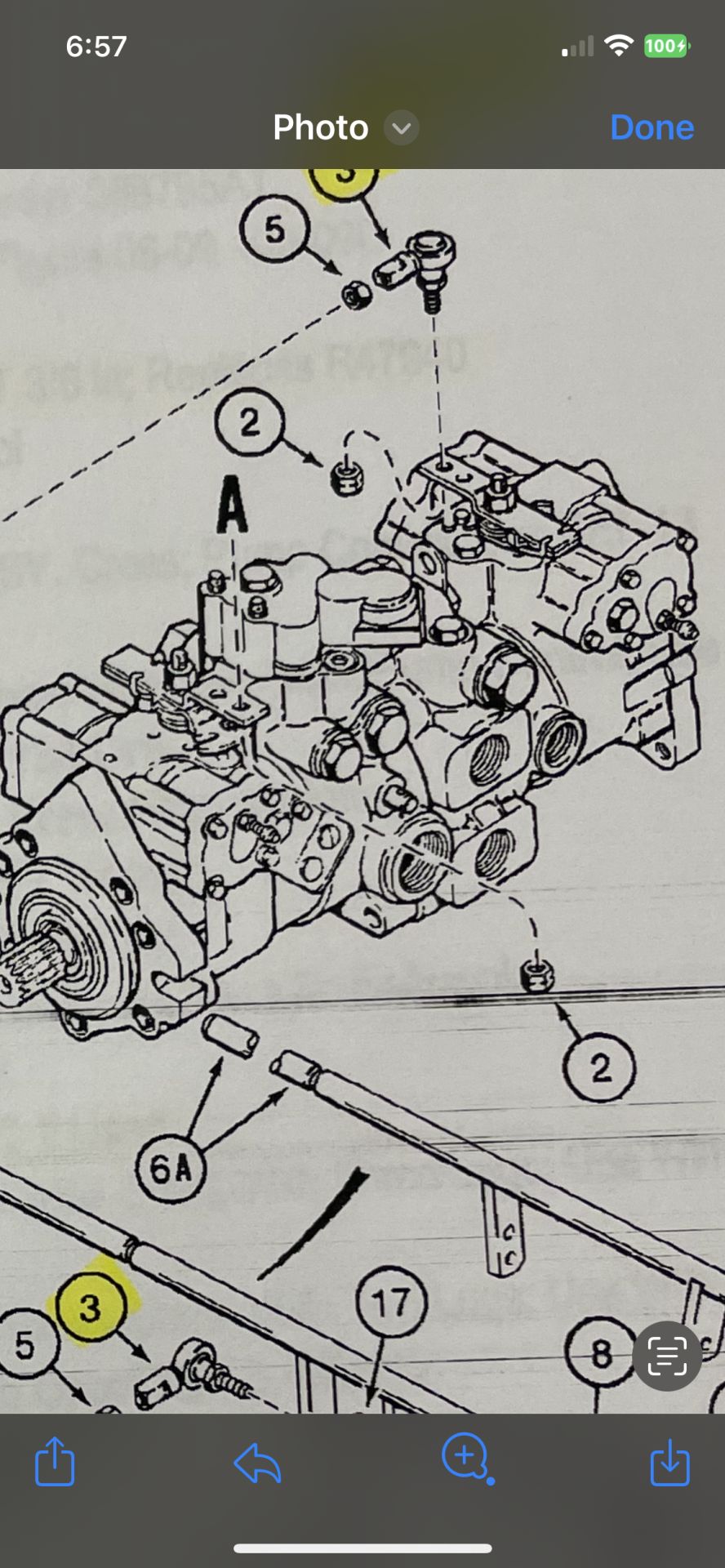

Hi with the ball joint pull out of the linkage it should be in neutral if not shorten or lengthen the ball joint should just drop in the linkage


Attachments

  • 26926AB4-B8D9-44CD-B16C-5309526BAEA1.png
    2.1 MB · Views: 78

billyb

Active member
Joined
Oct 13, 2022
Messages
38
Prior to hooking up your control linkages you need to centre or neutral adjust on top the hydrostatic drive unit under the lever where your linkage hooks up. Easiest to adjust with all wheels off the ground. There is a small bolt that locks the adjustment in place. You will see a curved slot for adjustment. Loosen small bolt and adjust gently until there is no movement of the wheels at all. Do this for both sides. Now adjust your linkages so the ball joint drops into the lever
