Auxiliary hydraulic control on 853 Bobkat

[1992--853Bobkat]

I just recently purchased a 853 Bobkat and I am in the process of fixing it up. The problem I have is I can not find accurate information on how the 2 switches on the left and right steering handles that control the auxiliary hydraulics are connected. I have 5 wires form each steering handle going to incomplete connectors in the hydraulic bay under the seat. If I could find accurate wire colour coding for the connectors I could fix the problem. I have a service manual for the 853 but all the wiring diagrams shown do do match my machine wire colours. My Local Bobkat dealer has not been very helpful. I am looking for suggestions on how to fix my machine. Thanks for any help.



[wateka]

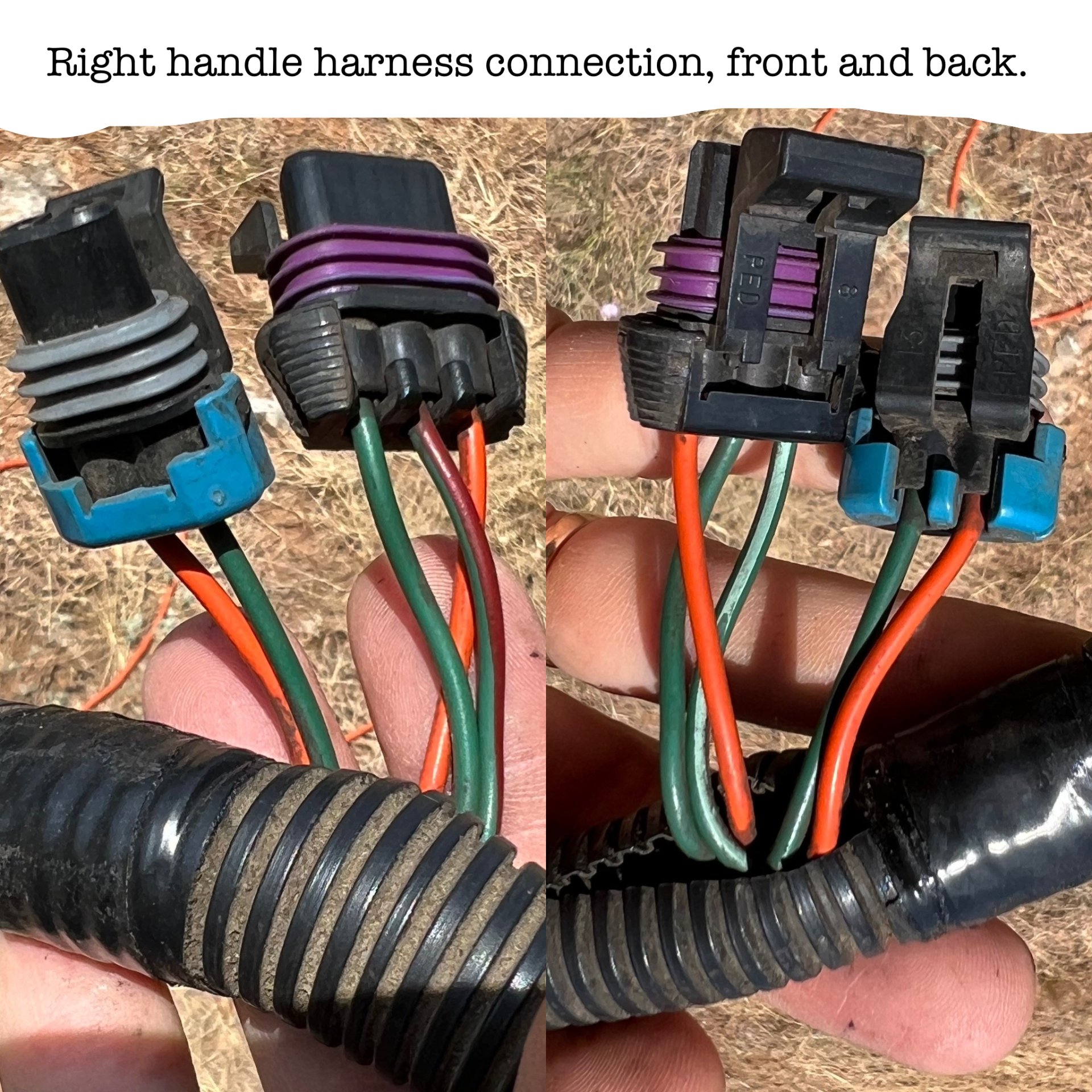

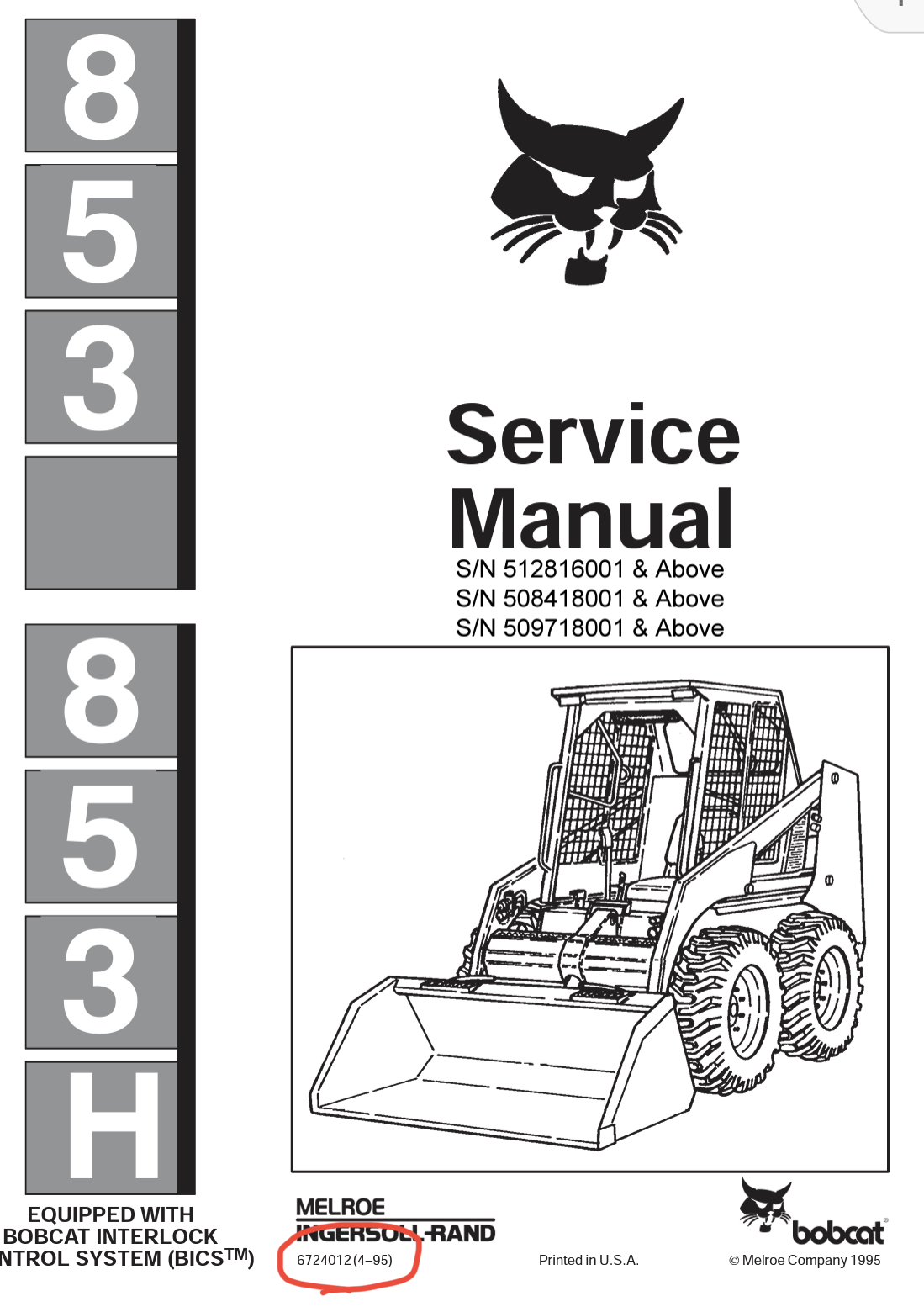

What version of the service manual do you have? Is it paper or PDF? See pic for example



[1992--853Bobkat]

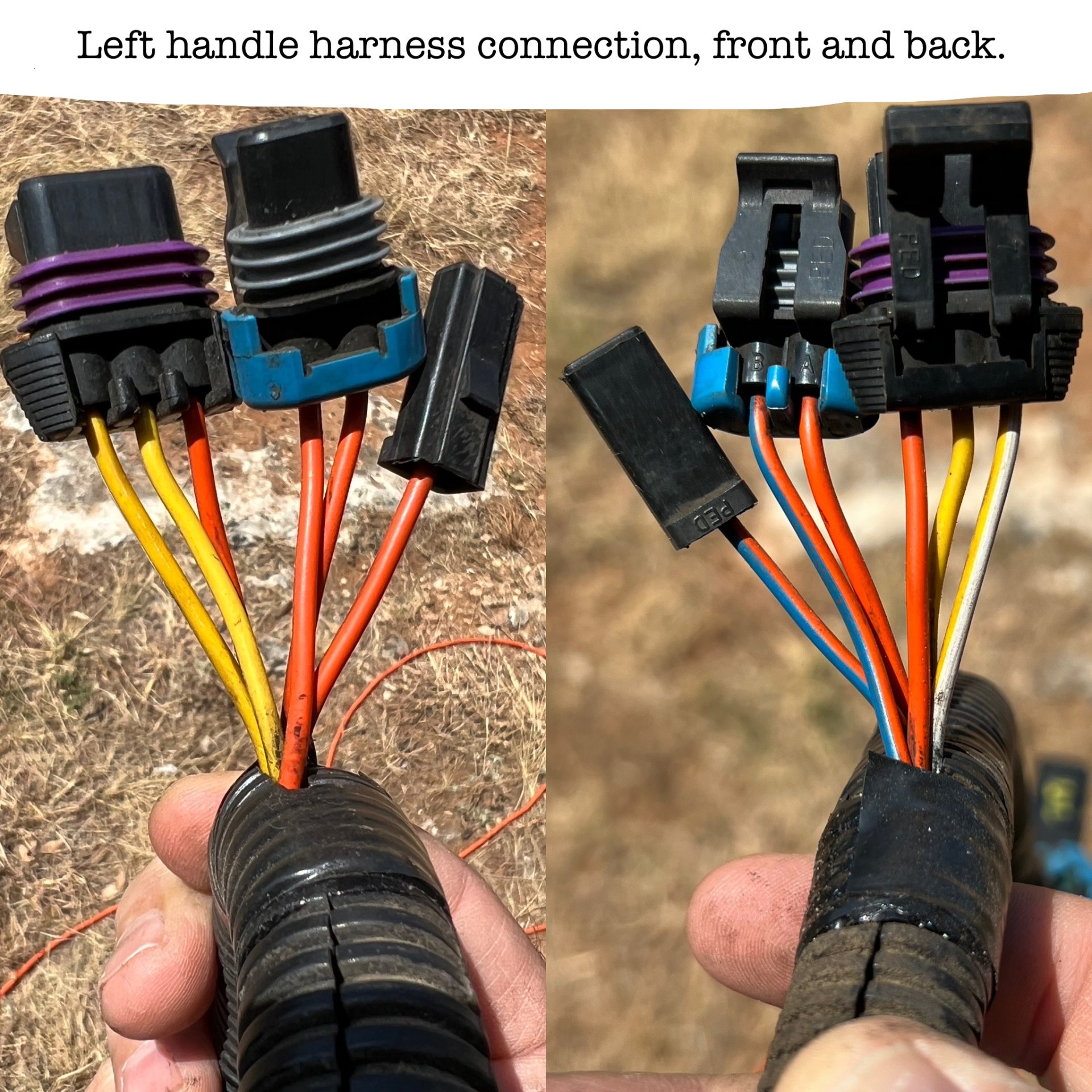

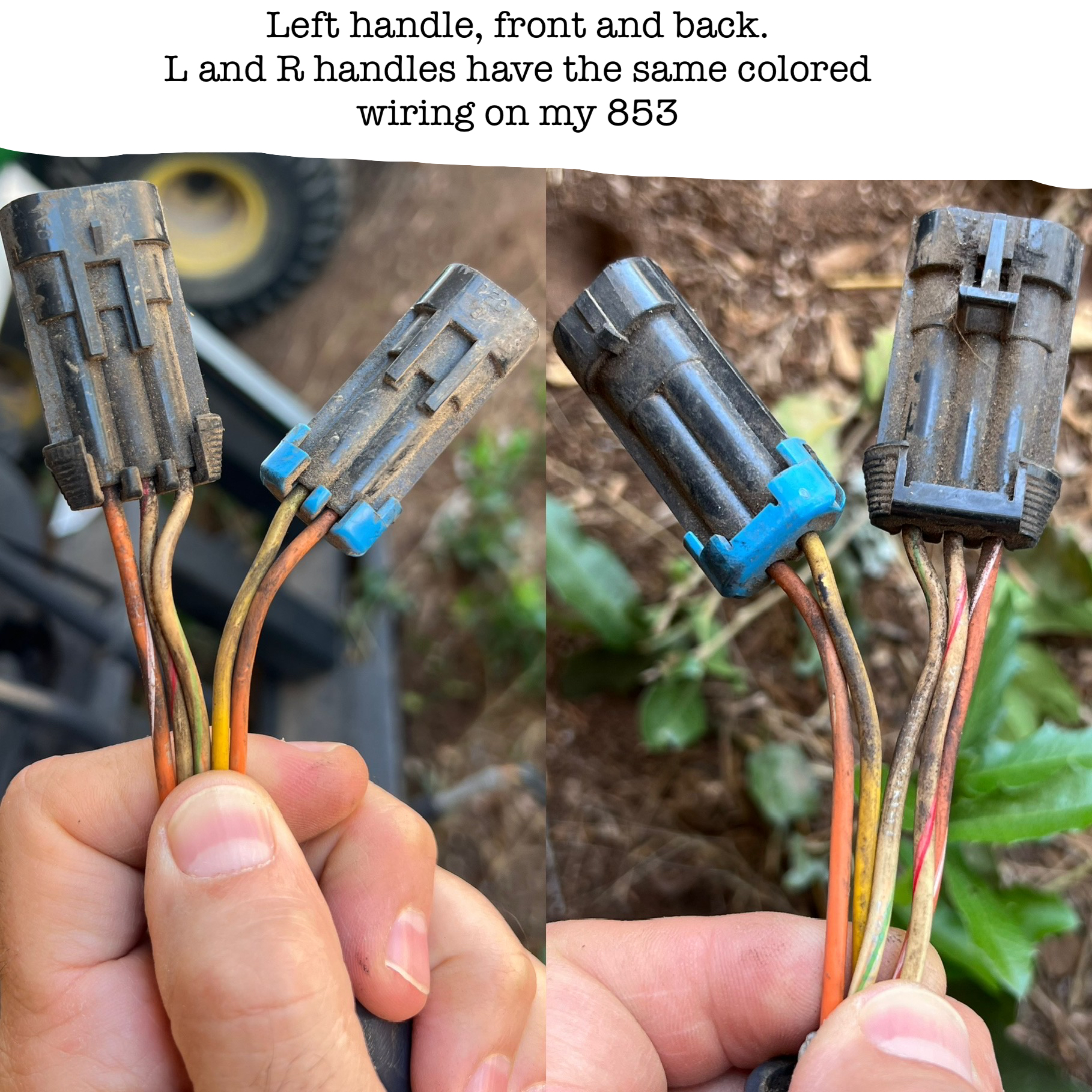

I have a pdf file with the same version as you circled. I am not familiar with what the function is for each wire( 5 on each side). It appears each side has a 3 wire connector and a 2 wire connector which the 5 wires from the handle switches are suppose to connect to. My left side has the 2 male connectors missing(just wire with pins that look like they were removed from male connectors). The right side has the 3 pin connector in place and has the 2pin male connector missing so 2 wires not connected. If I new the purpose of each wire I could figure out the connections



[wateka]

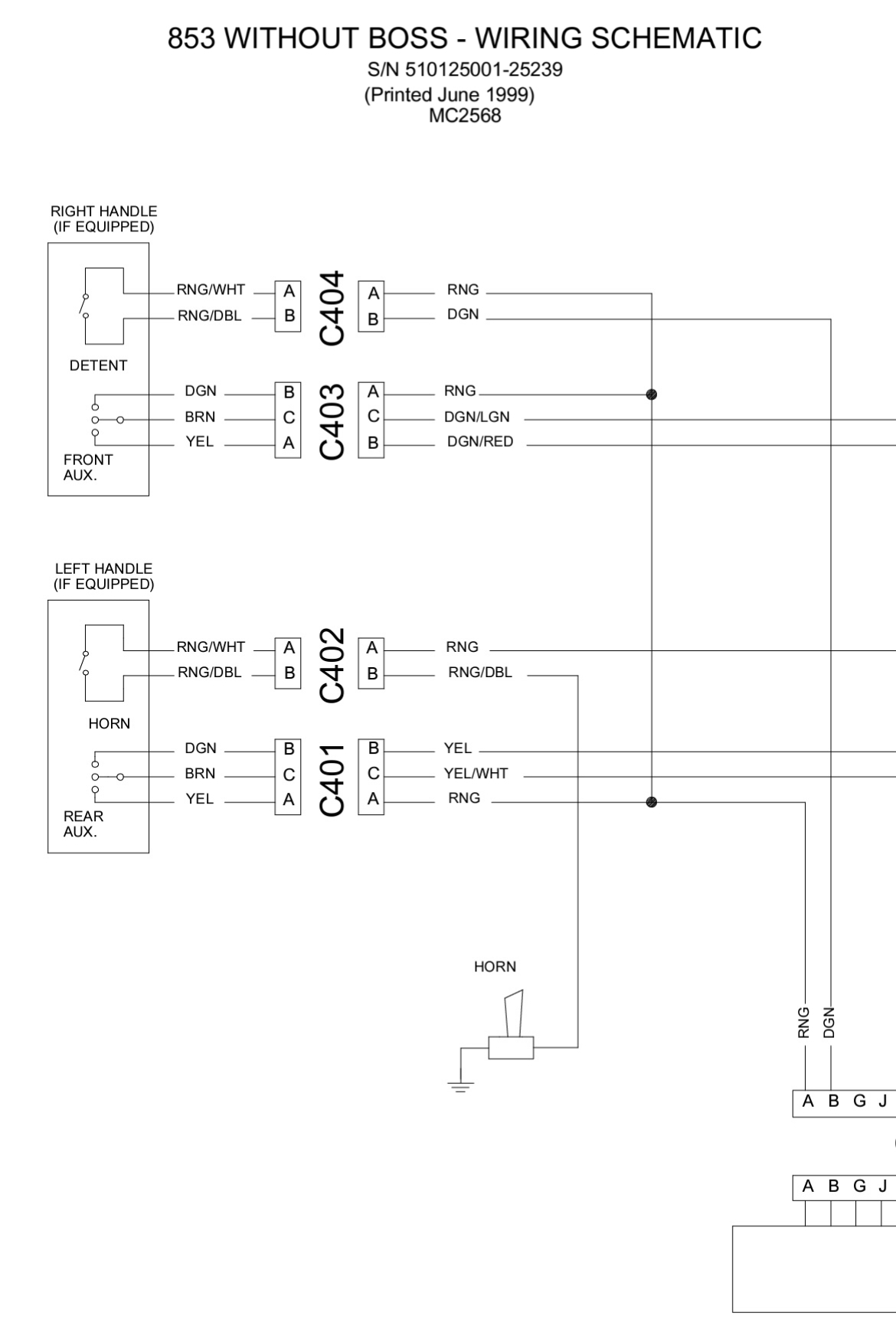

The below should get you pointed in the right direction. I asked about the manual version only because I hoped you had an older version from the one I circled in red.



[1992--853Bobkat]

Thank you so very much for the information. Just to be clear on my left and right designation, I assume the right steering lever is on my right side when I am sitting in the bobkat seat and facing forward? Can you please confirm. Thanks
Your help is a life saver. Thanks again.



[wateka]

Thank you so very much for the information. Just to be clear on my left and right designation, I assume the right steering lever is on my right side when I am sitting in the bobkat seat and facing forward? Can you please confirm. Thanks
Your help is a life saver. Thanks again.

Your assumption is correct.



[1992--853Bobkat]

Thanks again
