ItsWootie


Originally posted in: Thread 'L555 questions'

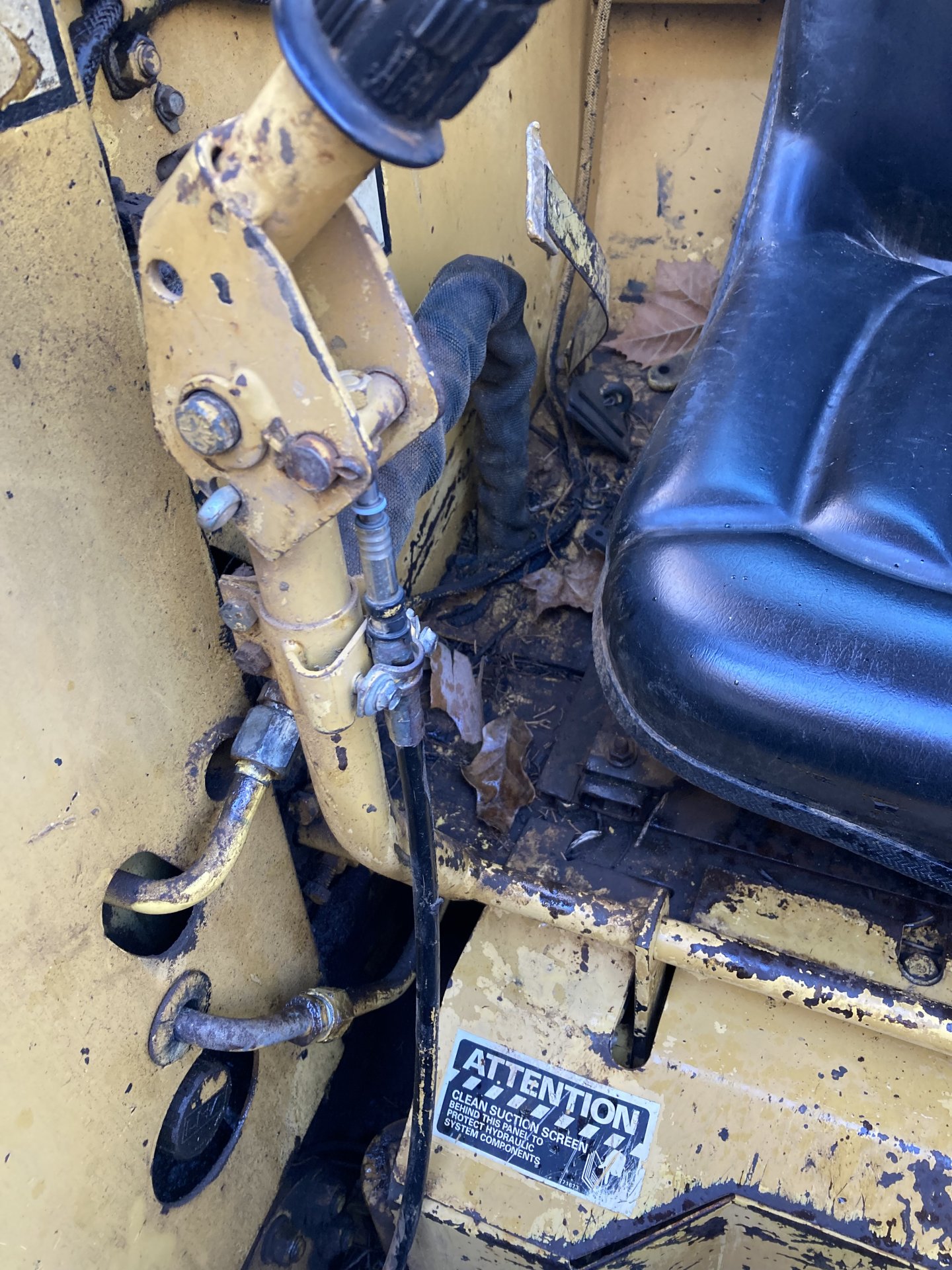

the pic shows the aux hydralic handle located on the right steering control. aux hydralic are cable remote to a valve mounted on the front foot right area of the operator. this pic shows the valve pinned in neutral position as to not engage the valve. the only protection other than a pressure relief valve and it takes power away from unit if engaged by mistake. the remotes are located on the boom arms near where the boom step is to access the seat area.
