A couple weeks ago I removed the engine and Hydraulic pump to replace the seal on the pump shaft and had no leaks when I reinstalled it. This week when I start the engine after a couple minutes I get coolant dripping from the two metal cutout holes located underneath the skidsteer. I have...

Thank you for the reply. The one link was off since I had been testing it with and without the two links connected to the spool. The spool makes the pop with one or both links attached. Also it only pops when the linkage is attached and the spool is push in. If I disconnect the linkage and...

The seal on the shaft coming out of the Hydropump on my 853 going to the pulley is leaking. Once I pull out the engine and Hydropump together and remove the pulley can the seal be replaced without unbolting the Cast Iron Mount? When I remove the Snap Ring can I just pick out the old seal and...

I replaced the Seals on both Spools and as you can see in the video one of them seeming to be popping or binding. Not sure if it has always done this. I did use the old rubber boots since they were in good shape. Is the linkage pushing the spool into the control valve to far and I just need...

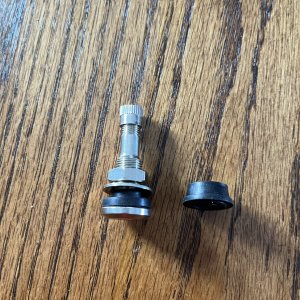

Never Mind they sent me the wrong valve stem. I need the ones that push thru from the front of the rim.

Bought these off Amazon to fix the valve stems on my 853. Says they are TR416 and fit a rim hole size of .453 & .625. The base plate at the bottom is valve stem is to large to go thru the hole. The rim is for a 12 x 16.5 tire. Any idea what the rim hole size is? Thankyou

Thankyou for the feedback, since I use the Bobcat so little now I was wondering how some of the no name brands hold up. Power King is one I am looking at.

I have a 1992 853 that is in really good shape with 1800 hrs. The original 12 x 16.5 10 ply tires are needing to be replaced. The only thing I do now with the Bobcat is move gravel around at my business and occasionally move dirt putting on about 25 hours a year. I have been on Amazon, Ebay...

My right lift cylinder is leaking on my 853 where you unscrew the silver part to remove the piston. Went to the online Bobcat Parts Catalog and they show two lift cylinder diagrams and each diagram lists a different part number for the Lift Cylinder Seal Kit. Any idea how I tell which seal kit...

Sorry I tried to post a picture from Google Photos, but could never get it to work. I have an 853 with the name on the fuel pump saying Zexel. On the right side of the pump there are four metal fuel injection lines coming out. Centered in the middle of the four lines on the side of the pump is a...

Great, thank you for the help

Had to remove the auxillary iines to replace them. Was able to get one line to go up from the bottom area of the machine past the lift arm pivot pin to the metal tube on the arm that goes to the coupler , but can't get the other rubber line past the pivot pin to connect to the other metal tube...

I removed my two lines off the machine this morning, but forgot to take a picture. Both rubber lines come down from the lift arm on the left side of the machine where they both attach to fittings on a bracket. The bracket is located just behind the battery. One hose has a fitting with a 90...
