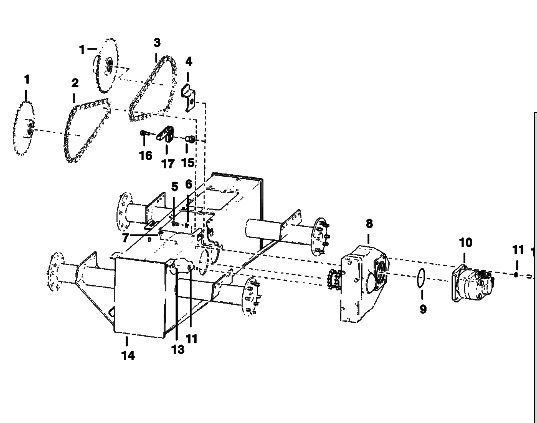

I think the hose routing is plenty clear.

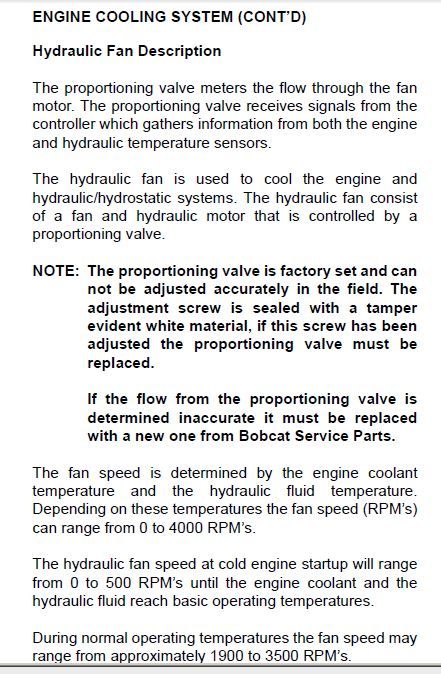

One light is for hydrostatic fluid over temp and low charge pressure, 2 different sending units connected to 1 light. Depends on the machine serial number as to where they are located.
The other light is for low engine oil pressure,
Sensor with yellow wire is pressure and sensor with yellow/black is temp.
They do supply ground to the bulb, orange wire at the bulb gets positive from key switch.
I looked at the Bobcat's online parts website and it showed a part number for a clutch. I didn't know your machine serial number so I only looked at the newest version of the T300.
The service manual doesn't say how many amps the clutch should draw but it does give a resistance value of 3-5 ohms.
I just went back and looked at every serial number version of the T300 and they all show the same number for the clutch. 6679145
Go to the accessories and options section of the part lists for your serial number then type “clutch” in the search box and click GO. It should bring up the parts list for the A/C and highlight the clutch on the diagram.
