Tree shear with buncher arms

Help Support SkidSteer Forum:

flightrn3698

New member
Joined
Aug 8, 2012
Messages
1
Can anyone tell me what brand this tree shear is? http://sanantonio.craigslist.org/grd/3138769630.html It looks like the skid steer mount was added later. Any negative comments about this shear? I am considering buying it for use on my New Holland L190. Thanks Jeff


mahans7

Well-known member
Joined
Aug 22, 2012
Messages
317
Ransome http://www.ransome-equip.com/ftshear.html
14” Forestry Tree Shear


Specifications Model Weight Height Width at Shear Arms Overall Depth Price Tree Shear 1,810 lbs 57" 63" 40" $ 16,900 Tree Shear w/ Accumulator 1,950 lbs 57" 63" 40" $ 17,900 Additional Specifications Cylinders Number Rod Bore Stroke Shear: 2 2 1/2" 5" 10 Double Grapple: 1 1 1/4" 2 1/2" 12 Accumulator: 1 1 1/8" 2" 8 Features: · Ideal tool for thinning in small logging operations. · Ground level cutting, eliminating stump problems. · Double arm grapples securely grab the tree as the shear arms are activated. · Designed for machines with a minimum of 40 hp, 13 gpm, 1700 psi, and 1,700 lbs of operating capacity. · Cylinder is rated at 3000 psi and optimum results will be obtained near those levels. · Shear blades are comprised of 1" high tensile steel with milled knife edges and are easily replaced when worn. · The optional accumulator enables the shear to "bunch" cut trees when operating in smaller wood, thereby improving productivity. · Machine must be equipped with auxiliary hydraulics; grapple arms operate from the same auxiliary hydraulic circuits that control the shear blades.

Too big for my 743.


mahans7

Well-known member
Joined
Aug 22, 2012
Messages
317
Specifications Model Weight Height Width at Shear Arms Overall Depth Price Tree Shear 1,810 lbs 57" 63" 40" $ 16,900 Tree Shear w/ Accumulator 1,950 lbs 57" 63" 40" $ 17,900 Additional Specifications Cylinders Number Rod Bore Stroke Shear: 2 2 1/2" 5" 10 Double Grapple: 1 1 1/4" 2 1/2" 12 Accumulator: 1 1 1/8" 2" 8 Features: · Ideal tool for thinning in small logging operations. · Ground level cutting, eliminating stump problems. · Double arm grapples securely grab the tree as the shear arms are activated. · Designed for machines with a minimum of 40 hp, 13 gpm, 1700 psi, and 1,700 lbs of operating capacity. · Cylinder is rated at 3000 psi and optimum results will be obtained near those levels. · Shear blades are comprised of 1" high tensile steel with milled knife edges and are easily replaced when worn. · The optional accumulator enables the shear to "bunch" cut trees when operating in smaller wood, thereby improving productivity. · Machine must be equipped with auxiliary hydraulics; grapple arms operate from the same auxiliary hydraulic circuits that control the shear blades.

Too big for my 743.

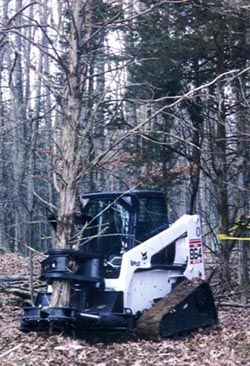

I need to brush up on my image posting skills, here's another try:
